Larch LVL Beam 90*45mm for construction
STRUCTURAL LVL Description Structural LVL Timber

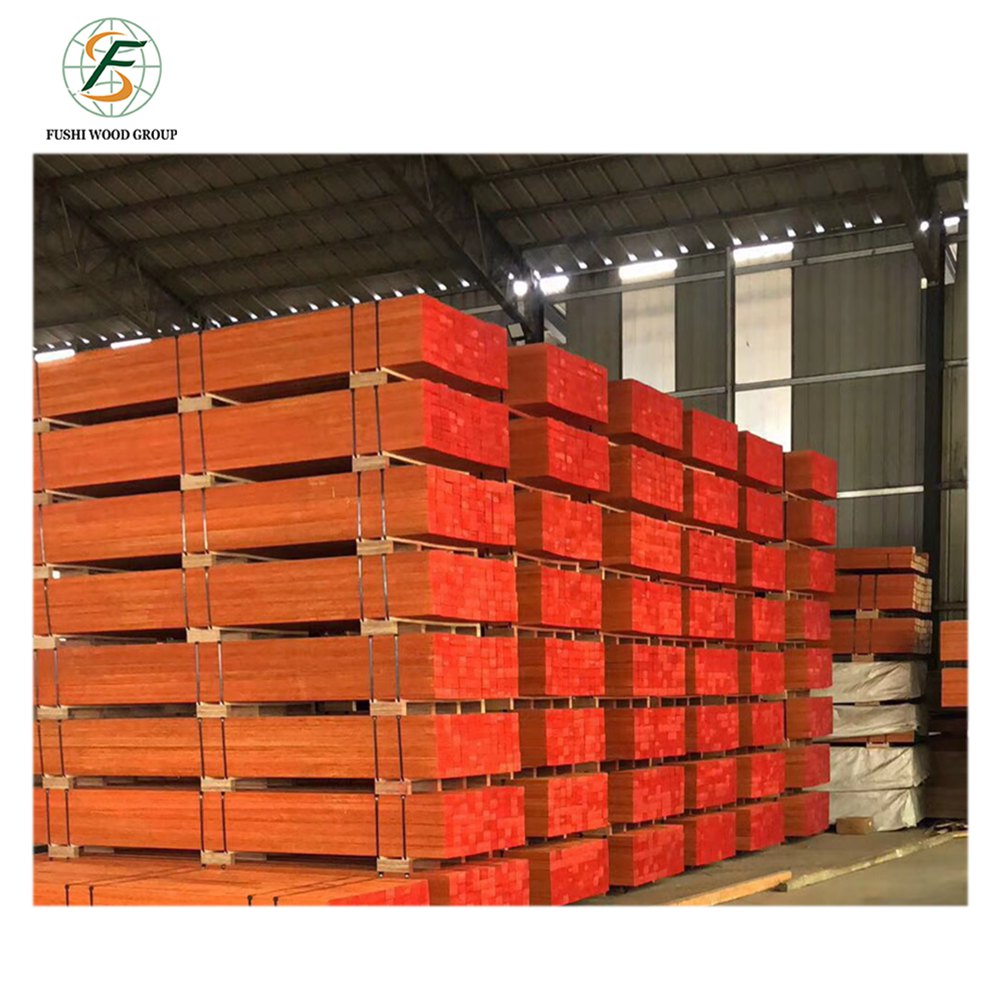

WBP Phenolic Glue 4200mm*95mm*63mm Structural LVL Formwork Timber for Australia Market:
FUSHIPLEX structural laminated veneer lumber (LVL) which has been manufactured in accordance with AS/NZS 4357 with properties determined in accordance with AS/NZS 4063.2 and therefore complies with the requirements for structural design in accordance with AS1720.1
FUSHIPLEX LVL terminator is available in all sizes and is part of the Carter Holt Harvey Terminator range. FUSHIPLEX H2-S Terminator is treated against termites south of the Tropic of Capricorn. The treatment is applied to the glue-line during manufacture to achieve full termite protection to the core of the beam. No further sealing is required on cut ends, holes or notches. Other treatment levels are available from suppliers on request, but treatment is limited to above ground use.
FUSHIPLEX LVL is manufactured using an 'A' Bond with less than 0.5mg/l Formaldehyde (equivalent to E0) emissions from the final product.
For quality assurance the FUSHIPLEX range is manufactured with independent audit processes and product certification. Carter Holt Harvey ensures that its wood is legally sourced from managed forests and offer FSC 'Chain of Custody' certified upon request.
FUSHIPLEX LVL is produced with a structural grade face and is not generally used in appearance applications and at the time of dispatch from the manufacturing site has a moisture content of between 8-15%.
Size Range
| SIZE | 35mm | 45mm | 63mm | 75mm |
| 90 mm | ||||
| 130 mm | ||||
| 150 mm | ||||
| 170 mm | ||||
| 200 mm | ||||
| 240 mm | ||||
| 300 mm | ||||
| 360 mm | ||||
| 400 mm | ||||
| 450 mm | ||||
| 525 mm | ||||
| 600 mm |
STRUCTURAL LVL Show
Test ReportInspection Item | Specification | Result | Conclusion |
Density (kg/m) | 5.0-6.0 | 5.6 | Pass |
Moisture Content (%) | ≤ 13 | 11.4 | Pass |
Length Tolerence (mm) | ±1.0 | ±0.6 | Pass |
Width Tolerence (mm) | ±1.0 | ±0.4 | Pass |
Thickness Tolerence (mm) | ±0.5 | ±0.3 | Pass |
Formaldehyde Emission (mg/l) | ≤ 1.5 | 1.36 | Pass |
Shear Resistance (V) | ≥ 20 | 27.71 | Pass |
Bending Resistance (M) | ≥ 12 | 15.75 | Pass |
Bearing Resistance (Rb) | ≥ 60 | 71.07 | Pass |
Bending Stiffness (E1) | Class I WBP | 460 kNm2 | Pass |
Advantage of FUSHILEX structural LVL Small logs can be made into large dimension LVL products.
Long lengths of LVL are available up to 12m
The wood resource can be optimised by grading and selecting veneer for different parts of an LVL cross section and making a range of products with different properties.
Structural properties of LVL are very uniform because the randomised layers of thin veneers are pre-graded for stiffness (coefficient of variation for modulus of elasticity less than 5%).
LVL members have high strength because of the low variability and randomised wood properties in thin layers.
LVL can be cut and machined with normal woodworking tools.
LVL is often used to complement the use of sawn timber in domestic construction.
Packing&Deliving1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Sea for batch goods, for FCL; 20GP,40GP.40HQ all is acceptable
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: Within 15 days after receiving deposit or original L/C
4. Package Information:
